Avery Dennison®
Pathfinder® 6032 Printer

Technical Support Documentation

Printer Manuals - Download the latest Pathfinder 6032 printer manuals.

Equipment Manual

Quick Reference

Supply Loading Quick Reference

Printer Wall Reference

Fixed Formats User Manual

Programmer Manuals Packet Reference Manual



French Printer Manuals  - Download the latest French Pathfinder 6032 printer manuals.

Equipment Manual



German Printer Manuals  - Download the latest German Pathfinder 6032 printer manuals.

Equipment Manual



Spanish Printer Manuals  - Download the latest Spanish Pathfinder 6032 printer manuals.

Equipment Manual



Chinese Printer Manuals  - Download the latest Chinese Pathfinder 6032 printer manuals.

Equipment Manual



Russian Printer Manuals  - Download the latest Russian Pathfinder 6032 printer manuals.

Quick Reference Manual



Accessory Manuals  - Download Pathfinder 6032 printer accessory manuals.

9462 Single-Station Battery Charger Operating Instructions
Includes English, French, German, Spanish, and Simplified Chinese

9465 Four-Station Battery Charger Operating Instructions
Includes English, French, German, Spanish, and Simplified Chinese

Wrist Strap Operating Instructions

Accessories List

Peel Quick Reference



Monarch® Portable and Handheld Printer Utilities

939I™, 6032, 9825®, 9850®, 9855® and 9860®
(and higher) printers.

Operating Systems: Microsoft® Windows® 98 or higher

MONARCH® ADK Download Utility (Application Development Kit Download Utility Version 1.8) - 1/10/2008
The ADK Download Utility is a Windows 98 (and higher) compliant download tool that allows you to transfer ADK compiled scripts, formats, and lookup files to your ADK compliant printers.

Note: Uninstall previous versions of the application before installing version 1.7.

032, 6039, 9403™, 9414™, 9416™, 9416XL, 9433, 9433SNP, 9460™, 9460SNP, 9490™, 9493, 9493SNP, 9805™, 9820™, 9825®, 9830™, 9835™, 9840™, 9850™, 9855®, 9860™, and 9906

Operating Systems: Microsoft® Windows®95/98/2000/XP®

MONARCH® ADK Download Utility (Application Development Kit Download Utility Version 1.8) - 1/10/2008
The ADK Download Utility is a Windows 98 (and higher) compliant download tool that allows you to transfer ADK compiled scripts, formats, and lookup files to your ADK compliant printers.

Note: Uninstall previous versions of the application before installing version 1.7.

6032, 6035™, 6037™, 6039™, 9433™, 9460™, 9490™ and 9493™

Operating Systems: Microsoft® Windows® 3.1/95/98

Quickset Label Designer (Version 1.11-A)
MPCL Format Design Utility.
Note: The Label Designer Utility allows you to design fixed or variable field formats; however, you cannot enter variable field data using the Monarch Utilities. Call Customer Service for information about complete software packages.



6032 Printer FAQs

  1. How do I get my printer to "beep" when the trigger is pressed?

    • The "beep" function was introduced February 2003. Older units prior to this date may need the firmware updated. Send the printer in to Service with a note requesting the latest firmware with the "beep" function installed.

    • Check the volume of the printer. Contact technical support for more information.

    2. Caution: The connection to the speaker may become disconnected if the printer was dropped or hit hard. Contact technical support for more information.



  2. My printer erases characters when I press the backspace button. Previous versions used to underline the character.

    3. Firmware version 1.5 of the 6032 uses the backspace key just like Scout 6020 and 6021 printers which erases characters. Reflashing the printer to version 1.5 or higher will update the printer.
    Note:If your printer is still under warranty, send it to service with a note requesting firmware 1.5. This is covered under the standard warranty agreement that came with the printer.



  3. How can I print special characters like "? $ %" with my 6032 printer that are not listed on the printer keyboard?

    4.

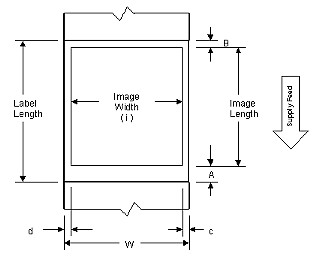

  4. Are there no-print zones on the 6032 label?

    5. Yes, the no-print zone is the area at the beginning or end of a label, which cannot be imaged due to motor ramping or stock motion limitations. No-print zones also exist along the edge of the supply to account for supply drift.

  1. Leading Edge NPZ
    There is no software imposed acceleration no-print zone. However, a 6 mm (0.235") no-print zone is recommended at the beginning of the label to ensure optimal print quality.

  2. Trailing Edge of Label NPZ
    The recommended deceleration No-Print zone is 3 mm (0.115"). Imposing on the deceleration No-Print Zone may lead to poor print quality or truncated formats.

  3. Right side No-Print Zone
    The recommended inside no-print zone is 1.5 mm (0.060”) to account for supply drift on supply less than 1.89" wide. For 2.0” wide supply, c = 0.055" (2.0 -1.89)/2

  4. Left side No-Print Zone
    The recommended outside no-print zone is 1.5 mm (0.060") to account for supply drift on supply less than 1.89” wide. For 2.0” wide supply, d = 0.055” (2.0 -1.89)/2


  5. Image Width
    The maximum value for i = 48 mm (1.89").


  6. Supply Width
    For peel mode, w not to be less than 0.50" and not to exceed 2.05".
    For non-peel mode, w not to be less than 0.50" and not to exceed 2.0".


    Supply Tolerance
    Feed direction supply tolerance is ±0.76 mm (±0.030”), Black Mark Feed direction tolerance is 0.12 mm (±0.005”).
